SWIT V-Mount Battery Charger

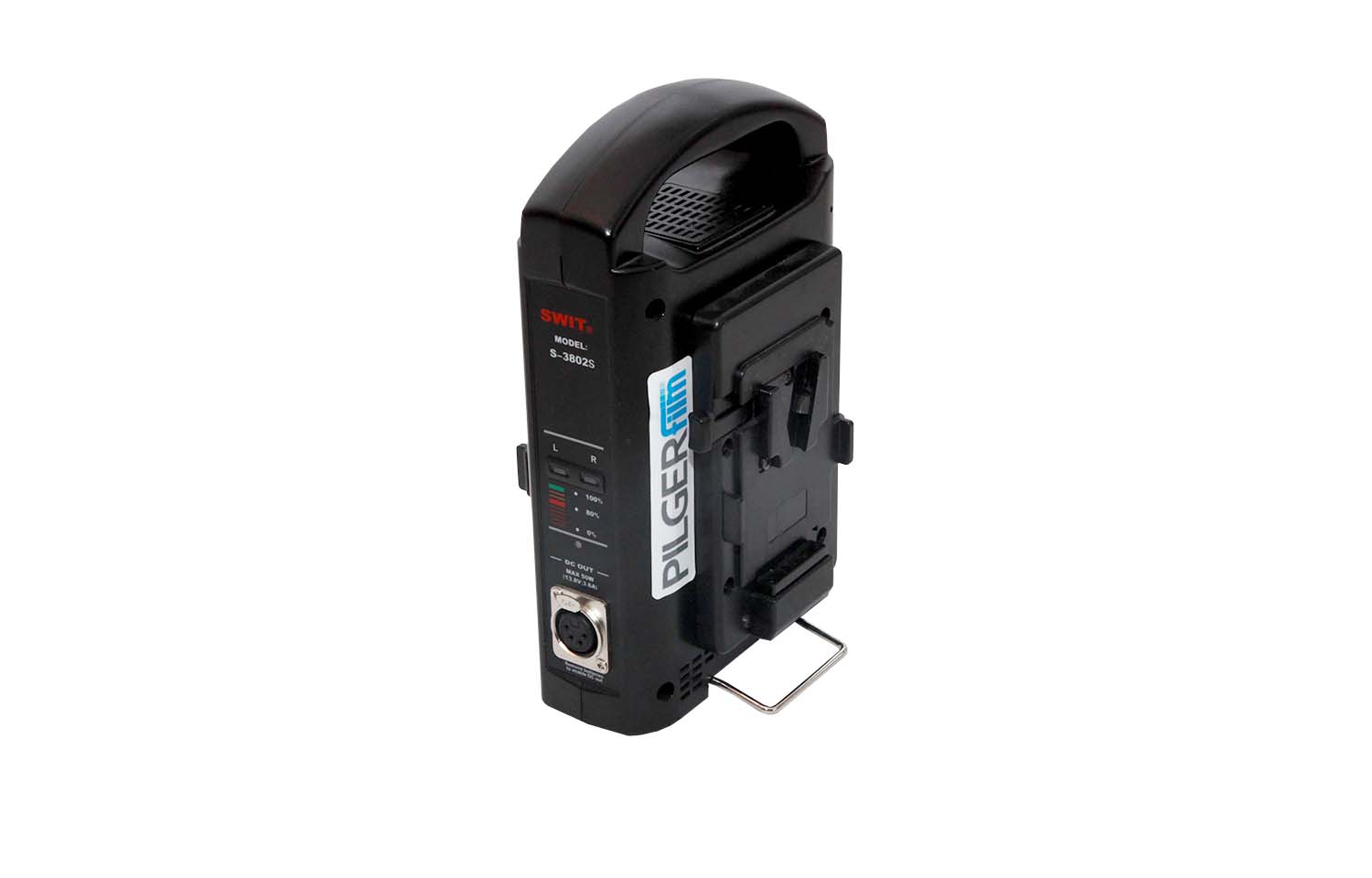

S-3802S 2-ch V-Mount Battery Charger/Adaptor



The S-3802S has 2 V-mount plates and can charge 2 batteries one-by-one sequentially. The charging output is DC 14-20V, 1.9A.


€ 250,--

netto exkl. MWSt

€ 10,--

Pro Tag / netto exkl. MWSt


Key Features:
    •    V-mount battery charger
    •    2-ch sequential charging
    •    LED charging indicators
    •    1-ch AC-DC adaptor through 4-pin XLR
    •    Light weight and portable


Input    AC 100V-240V 50/60Hz
Charging output    DC 14V-20V, 1.9A
Adapting output    DC 13.8V, 3.6A
Application battery    V-mount battery
Dimension    228×140×86mm
Weight    0,9kg

LED Charging Indicators for Each Channel
The S-3802S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors when charging.

AC-DC Adapting Output
S-3802S has a 4-pin XLR female connector on the front panel. Connected with the supplied S-7102 XLR female to male cable, the S-3802S can be used as AC-DC adaptor of DC 13.8V, 3.6A output. Please note the batteries cannot be charged while using AC-DC adapting output.
